一、产品概述
CWZ系列船用卧式自吸离心泵，适用于船舶冷却泵、卫生泵、消防泵、舱底压载泵等。

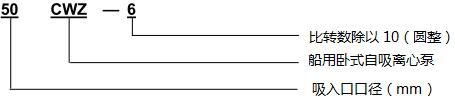

二、型号说明
例:
三、主要技术性能参数
|
型 号 |
流量m3/h |
扬程m |
必需汽蚀余量m |
转速r/min |
电机功率kW |
|
32CWZ-3 |
8 |
42 |
4.0 |
2950 |
4.0 |
|
32CWZ-4 |
8 |
30 |
4.0 |
2.2 |
|
32CWZ-5 |
8 |
21 |
4.0 |
1.5 |
|
40CWZ-4 |
12 |
42 |
4.0 |
4.0 |
|
40CWZ-5 |
12 |
30 |
4.0 |
3.0 |
|
40CWZ-6 |
12 |
21 |
4.0 |
2.2 |
|
50CWZ-5 |
21 |
42 |
4.0 |
5.5 |
|
50CWZ-6 |
21 |
30 |
4.0 |
4.0 |
|
50CWZ-8 |
21 |
21 |
4.0 |
3.0 |
|
50CWZ-11 |
21 |
15 |
4.0 |
2.2 |
|
65CWZ-5 |
30 |
60 |
5.0 |
15 |
|
65CWZ-6 |
36 |
42 |
5.0 |
11 |
|
65CWZ-8 |
36 |
30 |
4.0 |
5.5 |
|
65CWZ-11 |
36 |
21 |
4.0 |
4.0 |
|
80CWZ-5.5 |
60 |
75 |
5.0 |
30 |
|
80CWZ-6 |
60 |
50 |
5.0 |
22 |
|
80CWZ-11 |
60 |
30 |
4.0 |
11 |
|
80CWZ-14 |
60 |
21 |
4.0 |
7.5 |
|
100CWZ-6 |
100 |
85 |
5.0 |
55 |
|
100CWZ-8 |
100 |
60 |
5.0 |
37 |
|
100CWZ-11 |
100 |
40 |
5.0 |
22 |
|
100CWZ-14 |
100 |
30 |
5.0 |
15 |
|
100CWZ-18 |
100 |
21 |
5.0 |
11 |
|
150CWZ-16 |
180 |
30 |
4.5 |
37 |
|
150CWZ-22 |
200 |
25 |
4.5 |
37 |
|
200CWZ-15 |
300 |
25 |
6.5 |
1450 |
37 |
|
250CWZ-20 |
550 |
22 |
5.0 |
75 |
|
32CWZ-5(Z) |
8 |
21 |
4 |
2950 |
1.5 |
|
40CWZ-4A(Z) |
12.5 |
32 |
4 |
3 |
|
40CWZ-5(Z) |
12 |
30 |
4 |
3 |
|
40CWZ-6(Z) |
12 |
20 |
4 |
2.2 |
|
50CWZ-4(Z) |
13.5 |
22.5 |
5 |
2.2 |
|
50CWZ-5(Z) |
21 |
42 |
5 |
5.5 |
|
50CWZ-6(Z) |
25.5 |
18 |
4 |
3 |
|
65CWZ-6(Z) |
36 |
42 |
5 |
11 |
|
65CWZ-8(Z) |
36 |
30 |
4 |
5.5 |
|
65CWZ-11(Z) |
36 |
21 |
4 |
4 |
|
80CWZ-6(Z) |
60 |
60 |
5 |
22 |
|
80CWZ-6(Z)A |
52 |
56 |
5 |
18.5 |
|
80CWZ-8(Z) |
60 |
42 |
5 |
15 |
|
80CWZ-11(Z) |
50 |
30 |
4 |
11 |
|
80CWZ-14(Z) |
60 |
21 |
4 |
7.5 |
|
|
